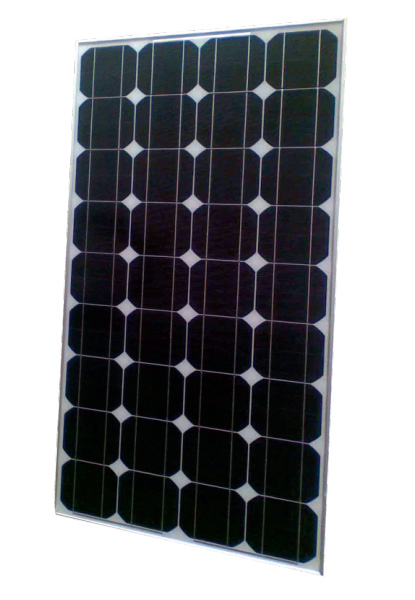

Monocrystalline Panel (230-270W)
Monocrystalline Panel (230-270W)
Original ImageOriginal Image
  • Monocrystalline Panel (230-270W)
  • Item No.: XXX-60M(XXX=230W-270W)
  • Number of Cells: 60 cells(6x10)
  • Size of Cell: 156x156 mm, Mono Crystalline silicon
  • Size of Module: 1650*992*45 mm (65.01*39.06*1.77 inch)
  • Weight: 19.3 kg
  • QTY/Container: 40HQ:672PCS, 40GP:560PCS, 20FT:240PCS
  • contact us

Prev: Photovoltaic Solar Panel (280-325W)    Next: Solar Module (165W-200W)

Detailed Product Description

Specifications:

Type M270 M265 M260 M255 M250 M245 M240 M235  M230
Wattage(W) 270 265 260 255 250 245 240 235 230
Open Circuit Voltage(V) 38.10 37.95 37.80 37.65 37.50 37.35 37.30 37.00 36.85
Short Circuit Current(I) 9.10 9.00 8.89 8.79 8.69 8.59 8.45 8.34 8.2
Maximum Power Voltage(V) 32.00 31.75 31.50 31.25 31.00 30.75 30.25 30.00 29.75
Maximum Power Current(I) 8.44 8.35 8.25 8.16 8.06 7.97 7.94 7.83 7.74
Cell Efficiency 18.83% 18.48% 18.13% 17.79% 17.44% 17.09% 16.74% 16.39% 16.04%
Module Efficiency 16.50% 16.20% 15.88% 15.58% 15.30% 15.00% 14.70% 14.40% 14.05%
Maximum System Voltage DC1000V
Temperature Coefficient of Voc -0.307%/°C
Temperature Coefficient of Isc +0.04%/°C
Temperaturecoefficient of Pmax -0.423%/°C
Maximum Series Fuse Rating 15A
Number of Cells 60 cells (6*10) , Mono Crystalline silicon, 156x156 mm
Junction Box with 6 bypass diodes
Cable Length 900mm,4mm2
Tempered Glass 3.2mm(0.13inches)tempered glass
Cell Encapsulation EVA(Ethylene-vinyl-Acetate)
Back Sheet Triple-layer
Frame Anodized aluminum alloy
Dimension 1650*992*45mm(64.96*39.06*1.77inches)
Maximum Surface Load Capacity 5400pa
Hail steel ball fall down from 1m height
Temperature Range -40°C to + 85°C
Weight 19.3kg(42.61bs)
